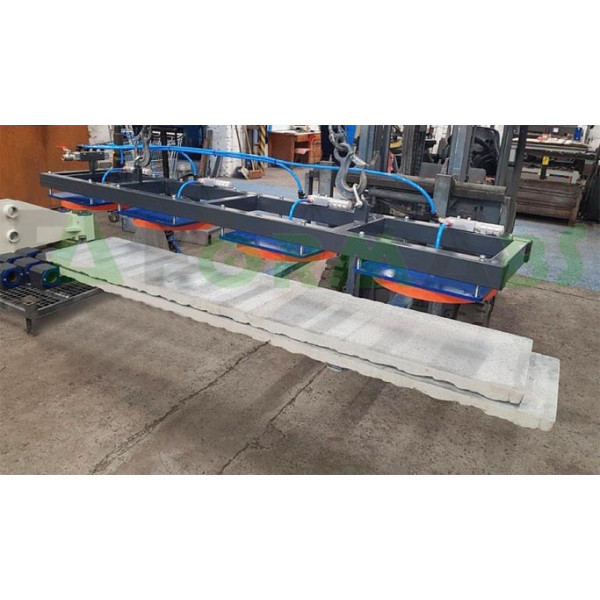

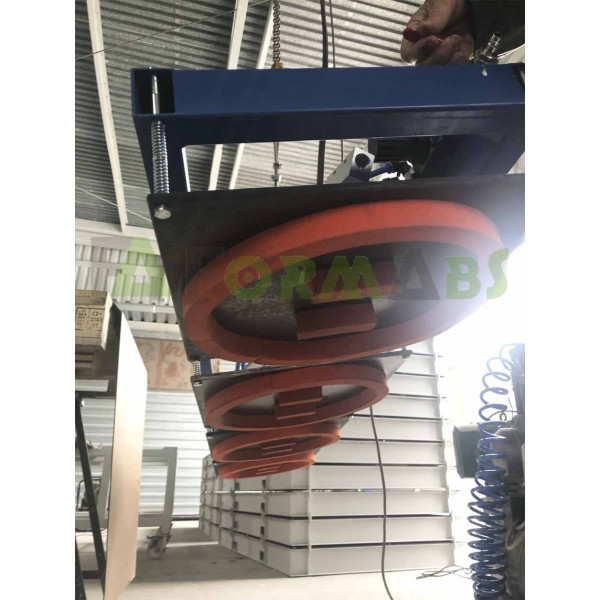

The Standard MAX vacuum gripper is an innovative and cost-effective solution for removing formwork and moving concrete slabs, especially fences. This tool is a worthy alternative to traditional methods such as the dry line. The vacuum gripper can be used as a stand-alone device, which allows for significant savings on equipment.
One of the main advantages of the vacuum gripper for concrete is its low cost compared to similar mechanisms on the market. The vacuum gripper is available in two versions: without adaptation and with adaptation for electric hoists.
- Vacuum gripper without adaptation: pprice - 5,100 euros per unit. This version is designed for use without additional adaptation mechanisms, which makes it more affordable and easier to install.
- Vacuum gripper with adaptation for electric hoist: price -
5300 Euro per unit. This version includes an adaptation mechanism for electric hoists, which allows the gripper to be easily integrated into an existing lifting system. Please note that the electric hoist is not included in the price.
Both versions of the vacuum gripper weigh 230 kg, making them light enough for transport and installation.
Recommendations for use
For optimal performance of the vacuum gripper, we recommend using an Atlas Copco compressor with the following specifications:
- Inlet: 1/2 inch
- Receiver capacity: 500 litres
- Pressure: 11 bar
- Power: 7.5-9 kW
- Voltage: 400 V
- Capacity: 772 litres per minute
Terms of delivery and payment
Delivery time is 1 month from the date of order. Payment terms are 50% prepayment upon conclusion of the contract and the remaining 50% before shipment. The price does not include delivery, VAT and customs duties.
Additional discounts
- After installation, the investor is given a 10% discount.
- A 10% discount is also given after invoicing one month after delivery.
The Standard MAX vacuum gripper is a reliable and economical solution for formwork removal and concrete slab installation, which will help reduce costs and increase the efficiency of the production process, being an excellent alternative to the traditional ‘dry line’. This innovative tool significantly simplifies and speeds up the process of dismantling concrete slabs, while ensuring high reliability and safety.
